รายละเอียดสินค้า :

• Input Sensor: configurable
• Pt100: 2, 3 or 4-wire,  0.170 mA excitation current, Alpha = 0.00385 according to IEC 751(NBR 13773)
• Voltage: 0 to 50 mVdc. Impedance > 1 MΩ
• Total Accuracy: maximum error of 0.3 % of maximum range for thermocouples; 0.2 % of maximum range for  Pt100 and voltage
• Response Time: ≤500 ms
• Isolation: 1000 Vac for 1 minute between input and output
• Output: 4-20 mA current  or 20-4 mA, two-wire type; linear in respect to the measured temperature
• Output Resolution: 0.004 mA (12 bits)
• Power: 12 to 35 Vdc, voltage over the transmitter
• Maximum Load in series:        RL= (Vdc – 12) / 0.02 Ω where Vdc is the power voltage
• Operating Temperature: -20 to  75 °C
• Relative Humidity: 0 to 90 % RH
• Eletromagnetic Compatibility: EN 50081-2, EN 50082-2
• Internal protection against reversed power voltage polarity
• Internal cold junction compensation for thermocouples

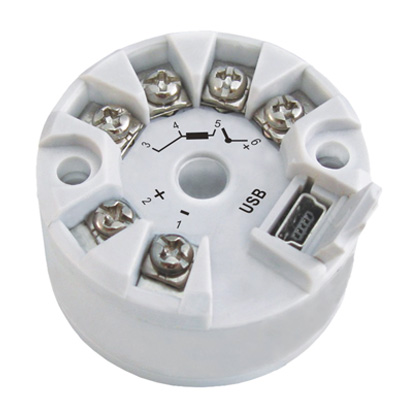

• ABS enclosure, 44 mm diameter   and 24 mm maximum height
• Communication cable: mini-B USB cable, 5 pins
