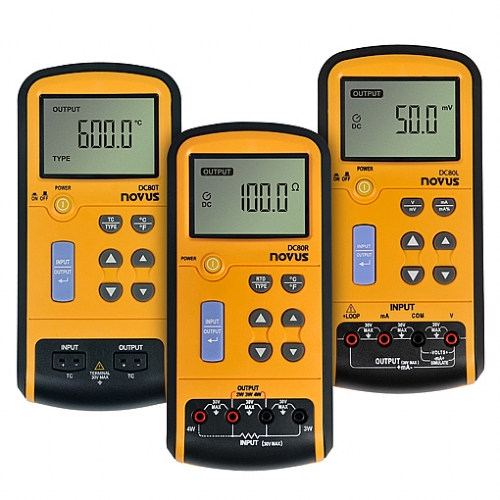

Calibrators - Thermocouple, RTD, Voltage and Current

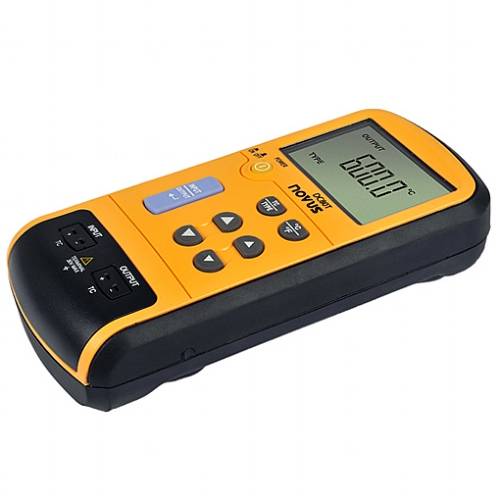

Thermocouple Calibrator/ Simulator
Features:
- Measures and simulates eight different thermocouple types: J,
- K, T, E, R, S, B and N
- Generates and measures electrical voltage (mV) in the -10 mV
- to +75 mV range
- Accuracy of ± 0.3 °C for temperature
- Accuracy of 0.025 % for mV
- Temperature resolution: 0.1 °C
- Voltage resolution: 0.01 mV
- Automatic cold junctions compensation (Cjc)
- Maximum error for cold junction compensation: ± 0.3 °C
- Maximum voltage allowed between terminals or terminals and ground: 30 V
- Temperature unit selection from °C and °F
- Low battery indication
- Operating temperature: 0° C ~ 50 °C
- Storage temperature: -40 °C ~ 60 °C
- Temperature effect on measurement/simulation: 0.02 % / °C
- from 0 °C ~ 18 °C and 28°C ~ 50 °C
- Operating relative humidity: 95 % up to 30 °C, 75 % up to 40
- °C e 45% up to 50 °C
- Operating altitude: 3000 meters
- Power: 6 type AAAbatteries 1.5 V
- Dimensions: 205 x 98 x 46 mm
- Weight: 475 g with batteries included
- Accessories included: 6 size AAA batteries, two mini
- thermocouple connectors, one bead thermocouple sensor
- with mini connector, operation manual and carrying pouch
Measuring and Simulation Ranges
| TYPE | RANGE | RESOLUTION | ACCURACY | MAX. CJC ERROR |
| J | -200 a 1200 °C/ -328 a 2192 °F | 0.1 °C/ °F | +/- 0.15 % F.S. | + 0.5 °C |
| K | -200 to 1370 °C/ -328 to 2498 °F | 0.1 °C/ °F | +/- 0.15 % F.S. | + 0.5 °C |
| T | -200 to 400 °C/ -328 to 752 °F | 0.1 °C/ °F | +/- 0.15 % F.S. | + 0.5 °C |
| E | -200 to 950 °C/ -328 to 1742 °F | 0.1 °C/ °F | +/- 0.15 % F.S. | + 0.5 °C |
| R | -20 to 1750 °C/ -4 to 3182 °F | 1 °C/ °F | +/- (1° C + 10 µV) | + 0.5 °C |
| S | -20 to 1750 °C/ -4 to 3182 °F | 1 °C/ °F | +/- (1° C + 10 µV) | + 0.5 °C |
| B | -600 to 1800 °C/ 1112 to 3272 °F | 1 °C/ °F | +/- (1° C + 10 µV) | + 0.5 °C |
| N | -250 to 1300 °C/ -418 to 2372 °F | 1 °C/ °F | +/- (1° C + 10 µV) | + 0.5 °C |
| mV | -10 to + 75 mV | 0.01 mV | +(0.025 % + 0.02 mV) | |

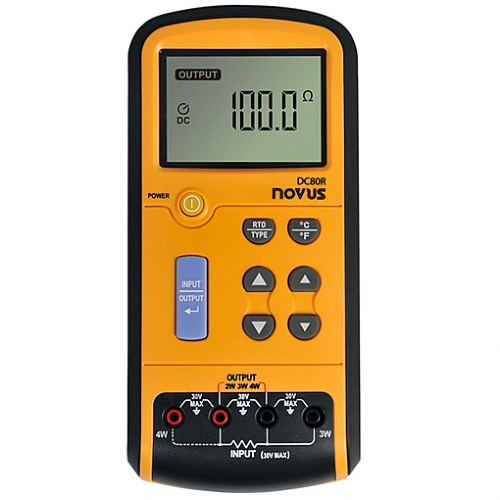

RTD Calibrator / Indicator
Features:
- Measures and simulates SEVEN types of RTDs: Pt10, Pt50,
- Pt100 (385), Pt100 (392), Pt200, Pt500 and Pt1000
- Generates and measures resistance values from 0 Ω to 3200 Ω
- Accuracy of ± 0.2 °C for temperature
- Accuracy of 0.1 Ω for resistance
- Temperature resolution: 0.1 °C
- Resistance resolution: 0.1 Ω
- Maximum allowed voltage between terminals or terminals and ground: 30 V
- Temperature unit selection from °C and °F
- Low battery indication
- Operating temperature: 0° C ~ 50 °C
- Storage temperature: -40 °C ~ 60 °C
- Temperature effect on measurement/simulation: 0.01 % / °C from 0 °C ~ 18 °C and 28°C ~ 50 °C
- Operating relative humidity: 95 % up to 30 °C, 75 % up to 40 °C e 45% up to 50 °C
- Operating altitude: 3000 meters
- Power: 6 type AAAbatteries 1.5 V
- Dimensions: 205 x 98 x 46 mm
- Weight: 475 g with batteries included
- Accessories included: 6 size AAA batteries, one pair of test lead extension, one pair of stackable cable extension, one pair of heavy duty alligator clips, operation manual and carrying pouch
Voltage and Current Calibrator
Features:
- Measures and simulates electrical voltage from 0 to 110 mV and from 0 to 15 V
- Measures and simulates electrical current from 0 to 24 mA
- Accuracy: ± 0.05 % F.S. + 5 counts to V and mV
- Accuracy: ± 0.03 % F.S. + 5 counts to mA
- 24 Vdc supply for loop power
- Rated input impedance: 2 MΩ, < 100 pF
- Maximum output current in voltage mode: 1 mA
- Temperature resolution: 0.1 °C
- Resistance resolution: 0.1 Ω
- Maximum allowed voltage between terminals or terminals and ground: 30 V
- Temperature unit selection from °C and °F Low battery indication
Measuring and Simulation of Electrical Voltag
| TYPE | RANGE | RESOLUTION | ACCURACY |
| Measure V/mV | 0~110 mV | 0.01 mV | +/- 0.05 % F.S. + 5 counts |
| 0~15 V | 0.001 V | ||
| Simulate V/mV | 0~110 mV | 0.01 mV | |
| 0~15 V | 0.001 V |
Measuring and Simulation of Electrical Current
| TYPE | RANGE | RESOLUTION | ACCURACY |
| Measure and Simulate | 0 ~ 24 mA | 0 to 0.001 mA | +/- 0.03 % F.S. + 5 counts |
