• 4-20 mA output on power loop
• Power supply: 8 to 35 Vdc
• Pt100 / Pt1000 in
• Pt100/Pt1000 3-wire connection
• Configurable measurement range
• Distinctive accuracy (Tamb 25 °C): 0.1 % on span
• Operating temperature: -40 to 85 °C
• Windows® configurator with USB interface
• Linearized output
• Resolution: 2 µA
• Sensor’s failure: configurable output on up-scale or down-scale

• Dimension:

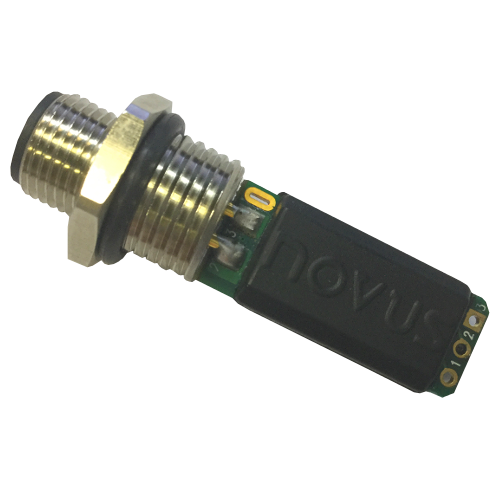

- TxMini-M12: 51.2 x 12.2 x 8.0 mm
- TxMini-DIN43650: 28.5 x 28.5 x 14.0 mm

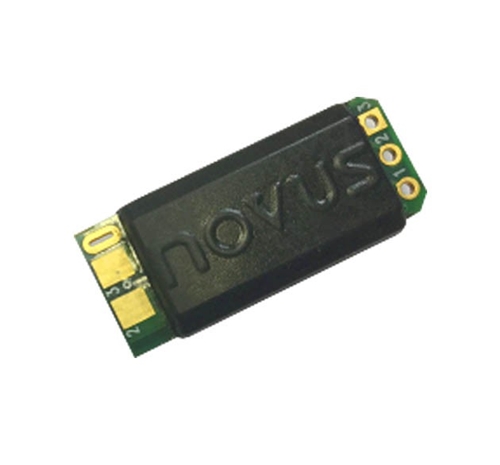

- TxMini: 30 x 12.2 x 8.0 mm
