Specification:
►Range : -50 to 600°C (TABLE 1.1)
►Dial : Alumiunm, White, Black lettering
►Lens : Glass
►Enclosure Rating : IP65
►Accuracy : +/- 1% of full scale
►With external rest (expect for BA25)
►Connection Type : Fixed thread type standard, other available
►Connection : 1/4"PT, 3/8"PT, 3/4"PT and other available (TABLE 1.2)
►Stem diameter (ød): ø6.35(1/4")STD., ø6, ø8, ø9.5(3/8"), ø10, ø12 are available.
►Material of connection and stem : 304SS STD., 316SS optional

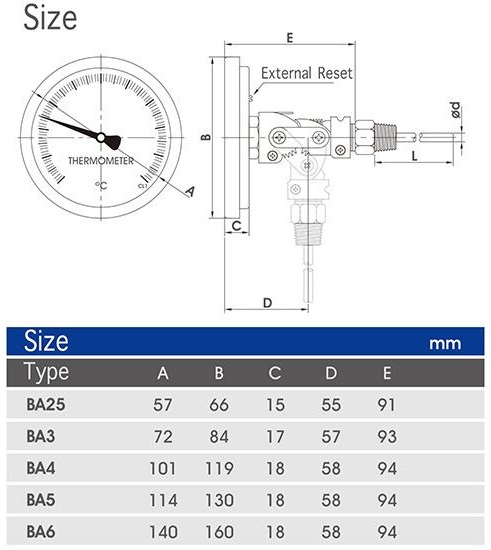

►Insertion Length (L) : Minumum refers to the Table 1.1 and maximum up to 1000mm

Options:
►Dual scale (°C and °F)
►Liquid damping up tp max. 250°C (at the sensor)
►316SS connection and stem
►Safety glass lens
►External coating
►Stainless steel tag No.
►316SS case and bezel
►Retaining clip
►Pointed tail
►Upper and lower warning indication
