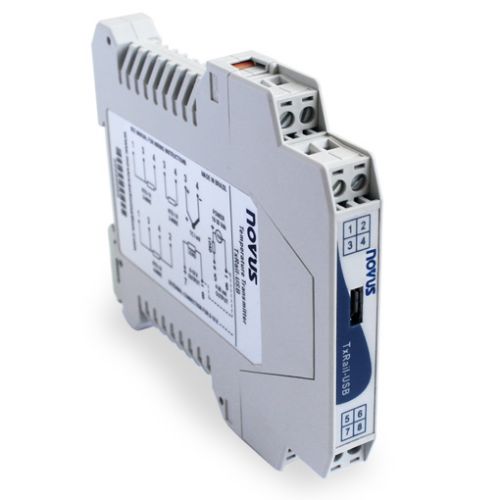

Temperature Transmitter รุ่น TxRail-USB

รายละเอียดสินค้า :

• Universal input accepts Thermocouples J, K, T, E, N, R, S, B, Pt100, Pt1000, NTC and 0-50 mV
• Configurable measurement range
• Sensor break detection according to NAMUR Ne43 recommendations
• Internal cold junction compensation
• Pt100/Pt1000 connection for 2, 3 and 4 wires
• Accuracy (@ 25 °C): typical 0,1% of span for thermocouple, mV, Pt100 and Pt1000
• Temperature effect <± 0,16% @ 25º C
• Configurable output to 4-20 mA  loop powered or 0-10 V.
• Output Linearized according with measured temperature
• Output resolution:
4-20 mA output: 2 µA
0-10 V output: 2,5 mV
• Power supply:
10 to 35 Vdc (4-20 mA output)
12 to 35 Vdc (0-10 Vdc output)
• Operating temperature: -40 to 85 °C
• Free Windows® configuration software
• USB micro-B port allows direct PC connection for configuration. USB Class CDC
• Dimensions: 99,5 x 114 x 12,5 mm
