รายละเอียดสินค้า :

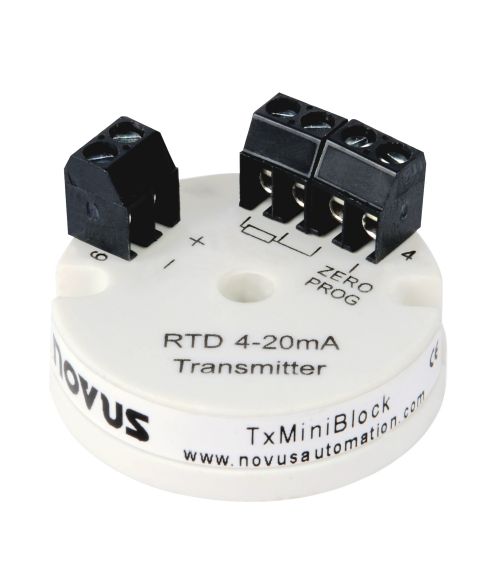

• Input: Pt100 RTD

• Maximun range: -200 to 650 °C / -328 to 1202 °F
• Minimun span: 40 °C
• Two-wire loop powered 4-20 mA output
• Linearized 4 to 20 mA or 20 to 4 mA output
• 2 or 3-wire Pt100 with linearization
• Microsoft Windows® configurator (optional). Configuration with a PC via TxConfig interface
• Manual zero (offset) adjustment can be done by means of a wire jumper simulating a keyboard
• Digital filter can be set for best 50 or 60 Hz performance
• Power supply: 12 to 30 Vdc
• Max. Load [ohms]: ( Vdc - 12 ) / 0.02
• Accuracy (Tamb 25 ºC): ±0.2% of span
• Output resolution: 4 uA
• Temperature effect: 0.003% SPAN/°C
• Operating temperature: -40 to +50 °C (-40 to 122 °F)
• Sensor failure protection: programmable burnout upscale or downscale
• Dimensions: 34 mm (Diam.) x 18 mm (H, including bornes)
