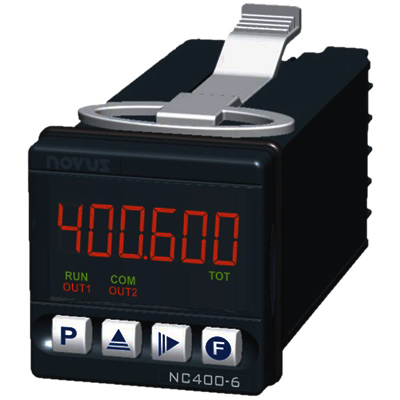

6-Digit Electronic Counter รุ่น 1/16 DIN - NC400-6



รายละเอียดสินค้า :

• 6-digit red display 12 mm-high
• Counting inputs, hold and reset◦Low level: < 2 Vdc
- High level: > 3 Vdc
- Input impedance: 4700 Ohms
- Maximum input voltage: ± 30 Vdc
- Dry-contact input polarization: 5V / 4700 Ohms
• Max. counting frequency: 20 kHz, 4 kHz or 55 Hz, depending on the counting mode selected
• Scaling factor: Configurable from 0,00001 to 9,99999
• Relay outputs: SPST 1.5 A @ 240 Vac
• Pulse output: 5 Vdc. Output impedance 100 Ohms
• Outputs triggering timing: 0,01 to 9999,99 s
• Auxiliary voltage source: 12 Vdc (± 10 %) / 50 mA.
• Power supply: 100 to 240 Vac/dc (±10 %), 50/60 Hz;
- Optional 24 V: 12 to 24 Vdc / 24 Vac (-10 % / 20 %)
• Consumption: 9 VA max
• Battery: Lithium CR2032.Typical battery life: 8-months.
• Operating environment: 5 to 50 °C, 30 to 80% RH
• Dimensions: 48 x 48 x 110 mm. Panel cutout: 45.5 x 45.5 mm
• Front panel: Polycarbonate UL94 V-2, IP65
• Case: ABS+PC UL94 V-0, IP20
• Weight: 130 g (basic), 150 g with 2 alarm relays
• Rated CE and UL
