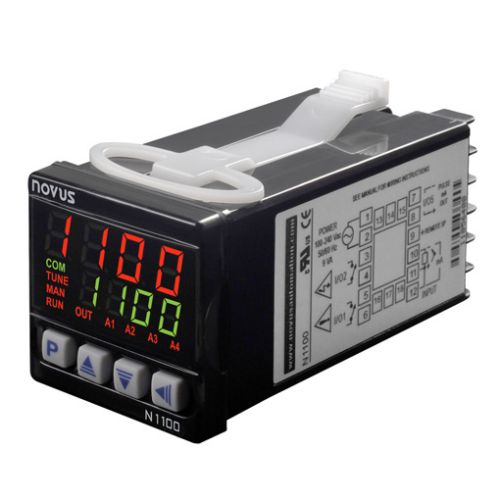

Universal Controller รุ่น N1100

รายละเอียดสินค้า :



• Universal input: Thermocouples J, K, T, S, Pt100, 4-20 mA, 50 mV, 0-5 Vdc withou hardware change

• Outputs: 3 A / 250 Vac Relay, linear 4-20 mA and logic pulse for solid state relays avaliable

• 2 alarms (Relays SPST) more Out linear 4-20 mA or logic pulse (standart)

• Up to 2 time relays, 0 to 6500 seconds

• Input resolution: 12,000 levels

• Power supply: 100-240 Vac/dc

• PV or SP retransmission in 4 to 20 mA

• Bumpless Auto/Manual function

• Remote setpoint input (4 to 20 mA)

• Programmable soft start (0 to 9999 sec.)

• Ramp and soak: 7 seven-segment profiles or 1 forty nine-segment profile with events

• PID auto tuning

• Front panel: IP65, Polycarbonate UL94 V-2

• Back panel: IP30, ABS + PC UL94 V-0

• Size 48 x 48 x 106 mm, 1/16 DIN

• Special Output for heating and refrigeration (HC Model)

Optional

• RS-485, MODBUS protocol, 19200 bps

• Third relay (SPDT) or open collector

• Heater break detection

• Power Supply: 24 Vdc/ac
