รายละเอียดสินค้า :

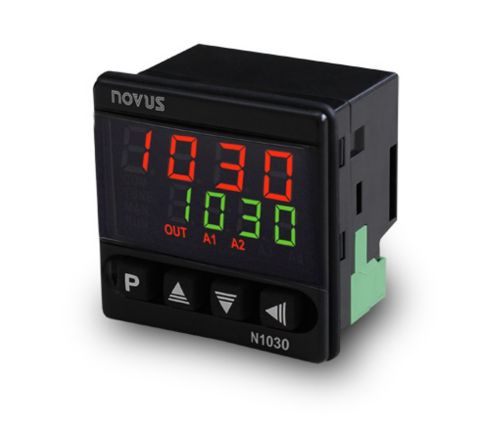

• Single Loop PID and ON/OFF controller

• PID auto tuning

• Two independent outputs available

• Dual relay output or 1 pulse and 1 relay versions

• Six alarm functions: LO, HI, differential, differential LO, differential HI, sensor break

• Initial blocking alarm function

• Adjustable alarm hysteresis

• Thermocouples J, K, T and Pt100 input

• Temperature unit °C or °F

• Decimal place indication

• Configurable setpoints limits

• Password protected configuration

• Factory configuration parameters recovery

• Dual red and green four-digit display

• Front panel material PC UL94 V-2

• Enclosure material: PC UL94 V-2

• Front panel protecion: IP65

• Operating environment: 0 to 60 ºC, 20 to 80 % RH

• Dimensions: 48 x 48 x 35 mm, 1/16 DIN

• Power supply: 100 to 240 Vac/dc or 12 to 24 Vdc / 24 Vdc/ac

• Detachable terminal block
